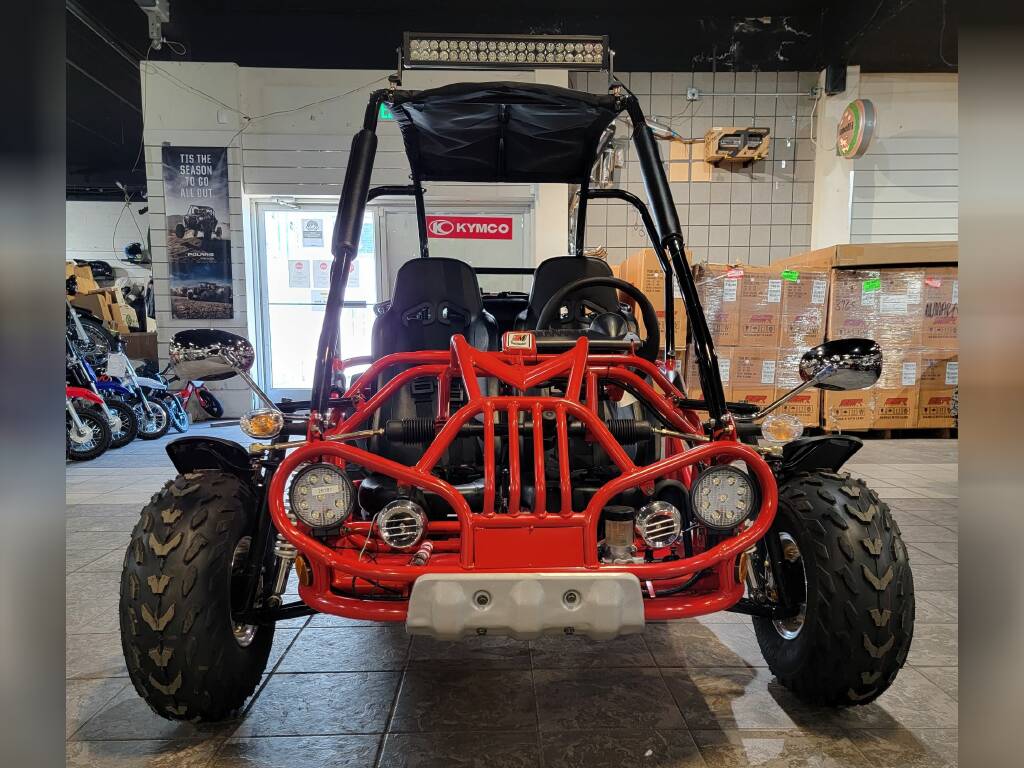

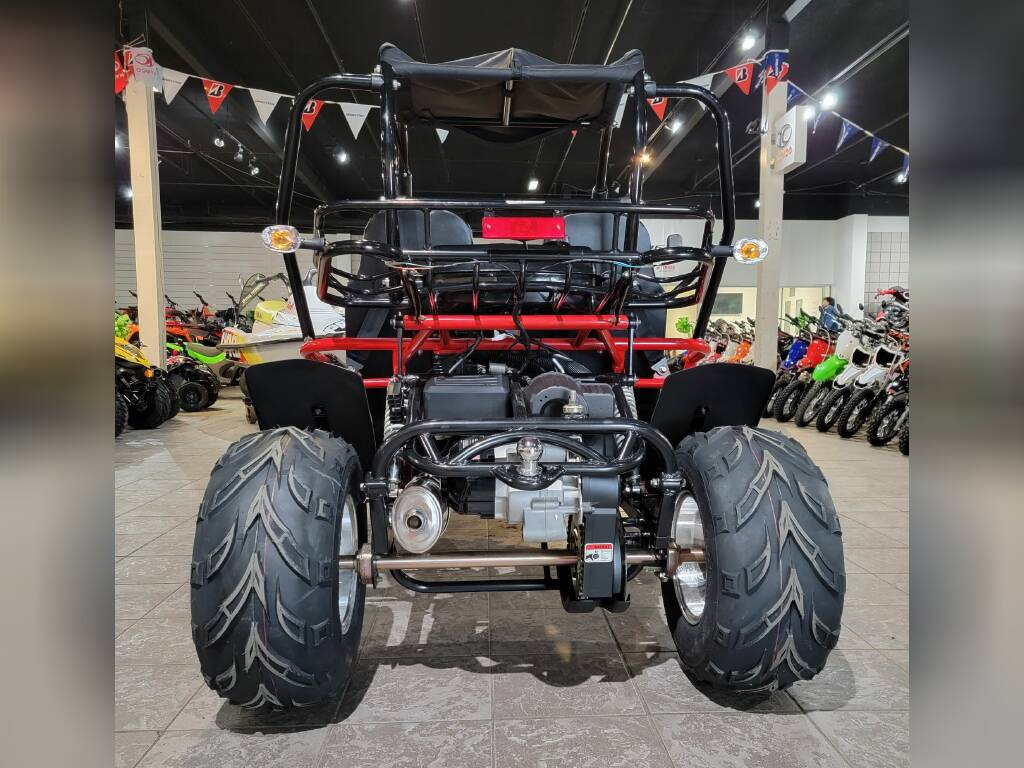

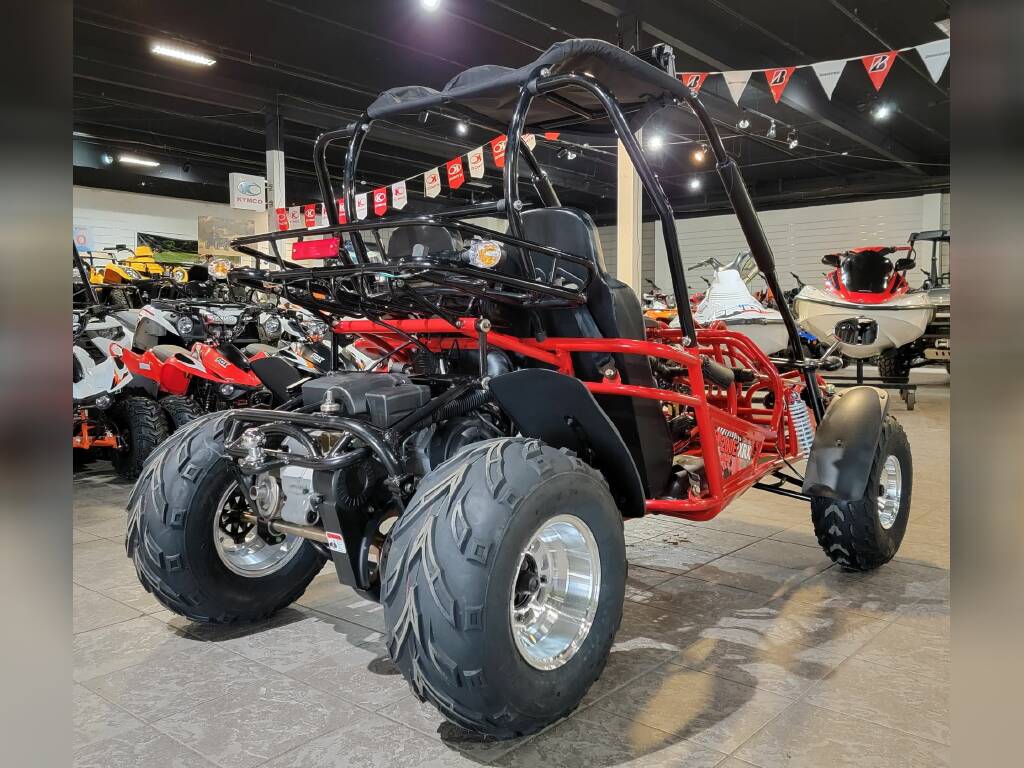

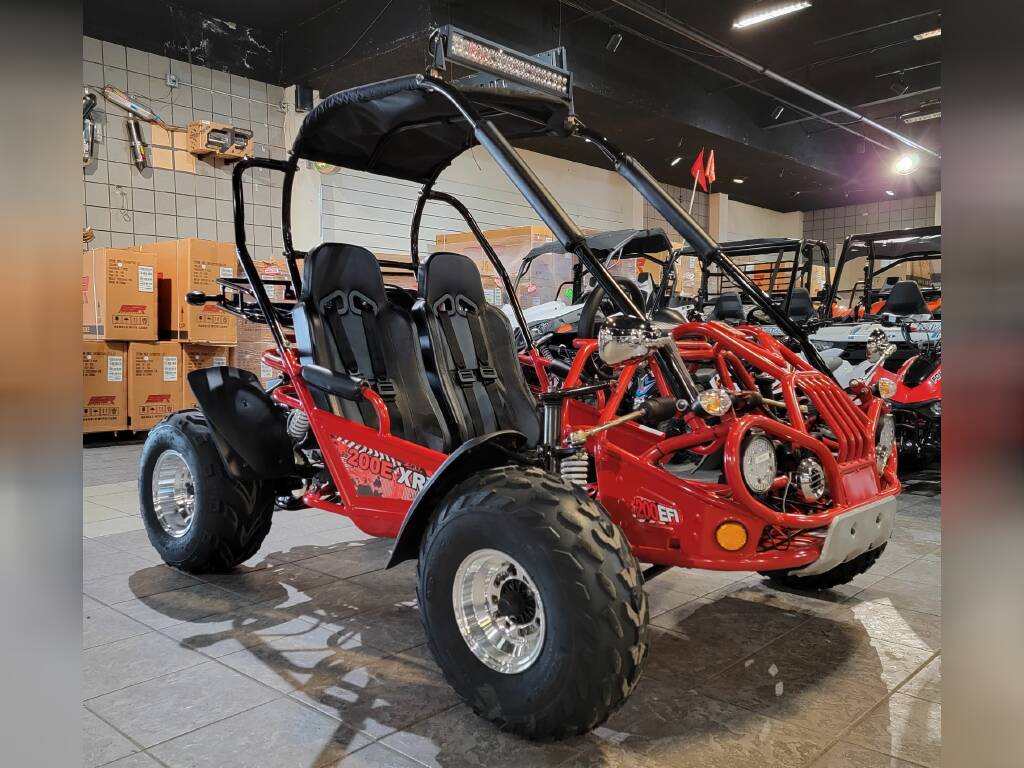

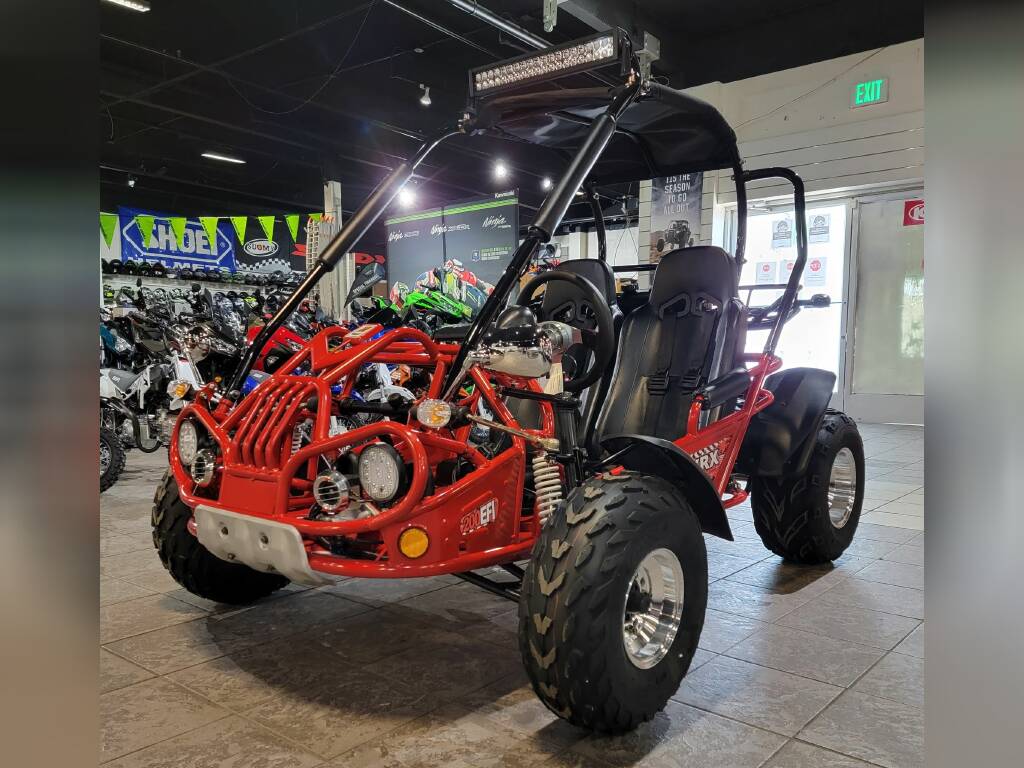

2021 Trailmaster 200E XRX EFI

PRODUCT INFORMATION

Engine Information

EPA and CARB certificated

Engine type:

4-stroke, single cylinder, air cooled

Displacement:

169cc

Max HP:

11hp/8000rpm

Max torque:

8.1 lb ft/6000rpm

Bore x stroke:

2.4×2.28 inches

Climbing ability:

18 degrees

Engine oil:

SAE 15W-40

Ignition:

C.D.I for 200 XRX & ECU for 200E XRX

Starting system:

Electric

Battery:

12V 10Ah

Carburetor brand:

Deli (Vacuum film)

General Information

Clutch:

Automatic CTV with reverse

Driveline / Driving wheel:

Chain / Dual wheel drive

Suspension, F / R:

Double A-arm / swing-arm

Brakes, F / R:

Both hydraulic brakes, Disc

Tires, F / R:

20×7-8 / 22×10-10

Wheel:

Aluminum

Fuel capacity:

2.25 gal

Weight, G.W. / N.W.:

573 / 485 lbs

Max load:

500 lbs

Dimension Information

Wheelbase:

59 inches

OA L x W
